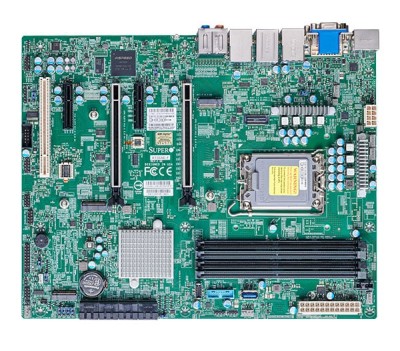

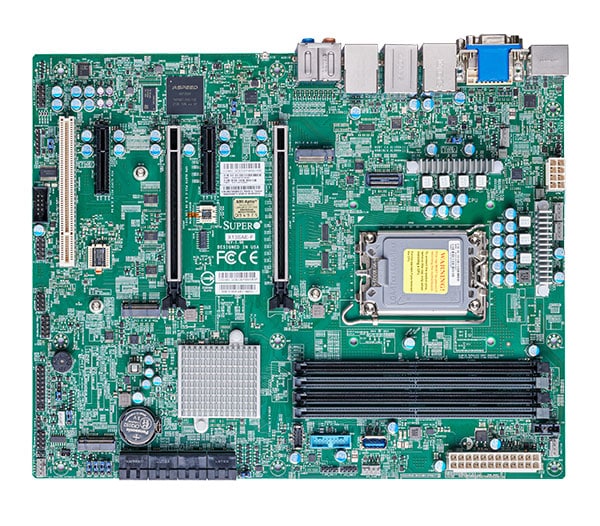

Supermicro MBD-X13SAE-F-O, Intel LGA1700, W680, ATX, 3xPCI Express, 4xDDR5, 3xM.2 + SATA3 RAID, VGA/DVI/HDMI/DP, USB-C, GigaLAN+2.5GbE LAN

Supermicro MBD-X13SAE-F-O

Key Features
• 12th/13th Generation Intel® Core™ i3/i5/i7/i9 Processors, Single Socket LGA-1700 supported, Up to 150W TDP
• Intel® W680
• 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MT/s, 4 DIMM Slots
• 2 PCIe 5.0 x16 slots (16/NA or 8/8), 2 PCIe 3.0 x4 1 5V PCI 32bit
• M.2 Interface: 3 PCIe 4.0 x4 (RAID 0, 1, 5) M.2 Form Factor: 2280 M.2 Key: M-Key
• Single LAN with Intel® Ethernet i225V Single LAN with Intel® PHY I219LM LAN controller for AMT/vPro
• 8 SATA3 (6 Gb, RAID 0, 1, 5, 10)
• 1 DP 1.4a, 1 HDMI 2.0b, 1 VGA, 1 DVI-D, 1 Dedicated IPMI LAN Port
• IPMI Supported

Tillverkare		Supermicro
SKU		MBD-X13SAE-F-O
Produktlänk		https://www.supermicro.com/en/products/motherboard/x13sae-f

Supermicro MBD-X13SAE-F-O, Intel LGA1700, W680, ATX, 3xPCI Express, 4xDDR5, 3xM.2 + SATA3 RAID, VGA/DVI/HDMI/DP, USB-C, GigaLAN+2.5GbE LAN

Supermicro MBD-X13SAE-F-O

Butikslager

Produktspecifikation
